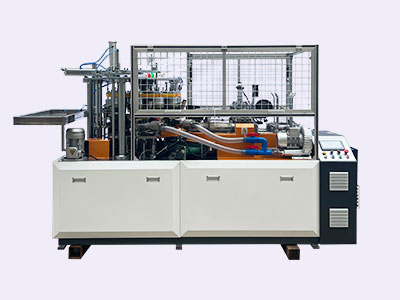

Paper Product-Making Machine

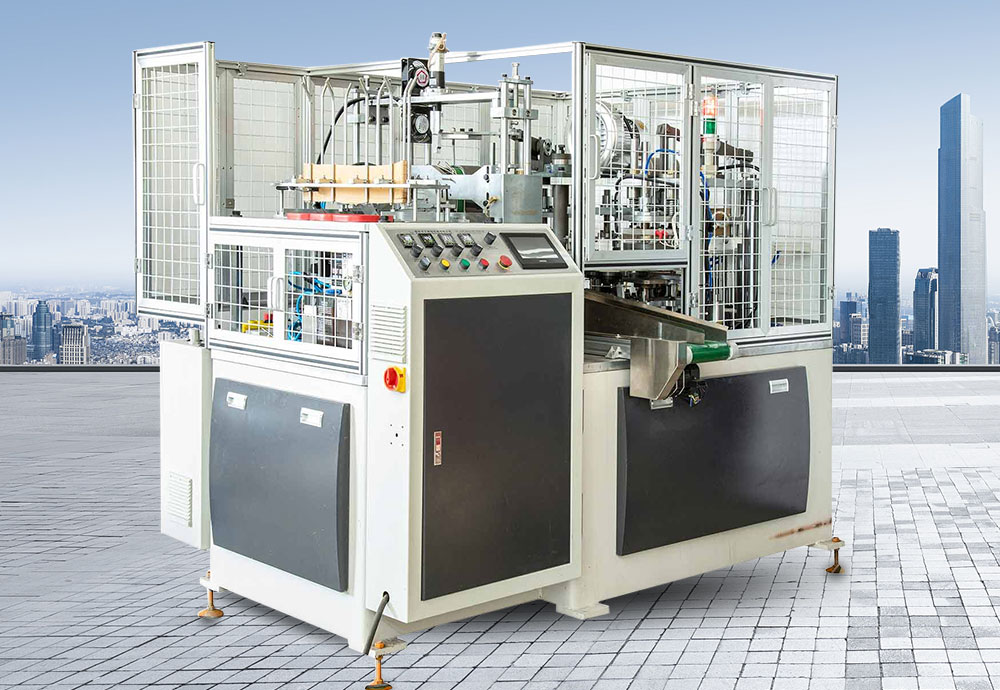

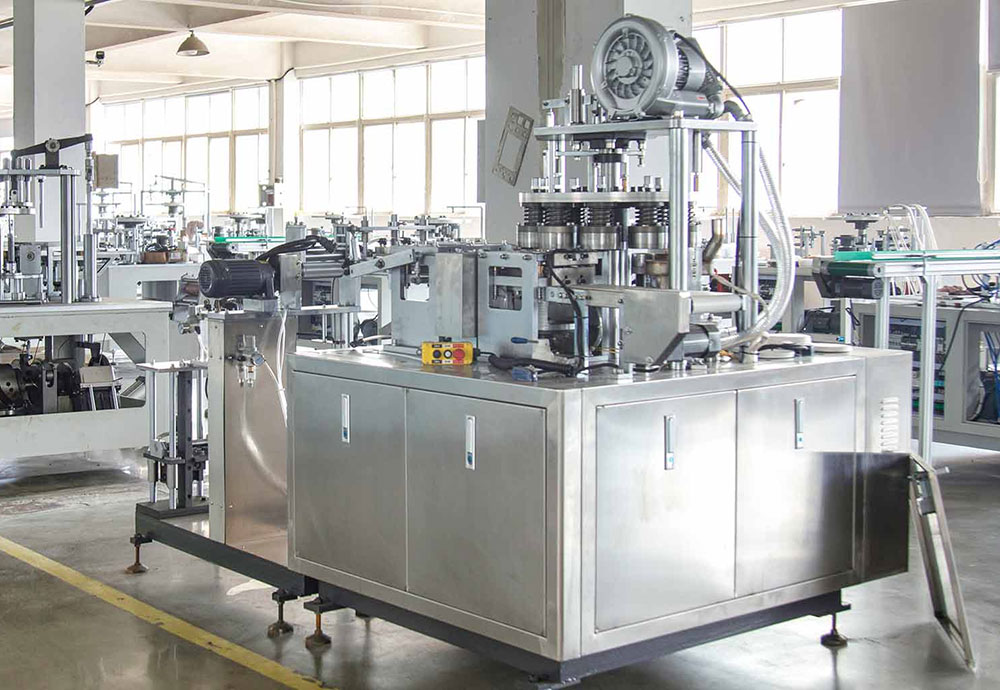

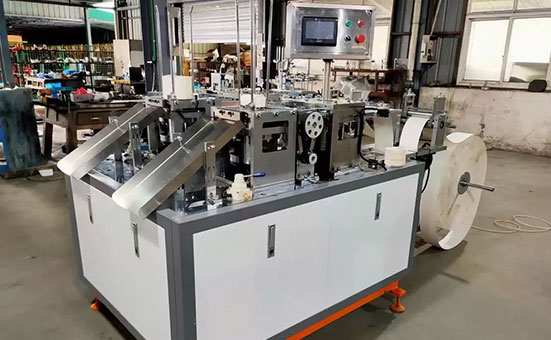

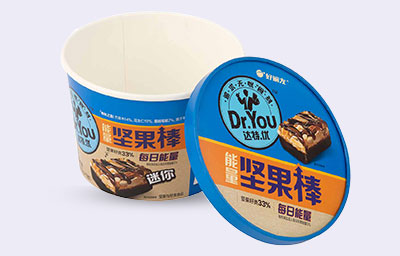

Coated paper is used as raw material, and can be customized into punched and non-perforated paper lids according to your needs. The machine is automatic roll paper feeding, automatic feed disc to mold, heating, folding, knurling, and discharge. With convey and counter for collection.
| Model | YG-SP100 |
| Lid Height | 8-15mm |
| Paper Cover Diameter | 50-100mm |
| Raw Material | PE Coated Paper,Glossy Coated Paper |
| Suitable paper weight | 250--350 gsm |
| Rated Productivity | 80-100 pcs / Min |
| Power | 10kw |
| Power Source | 220V/380V ,50Hz,3Ph |
| Machine weight | 2500kg |
| Working Air Source | 0.4MPa, 0.3m3/min |
| Packing Size | 2300*1500*2000MM |

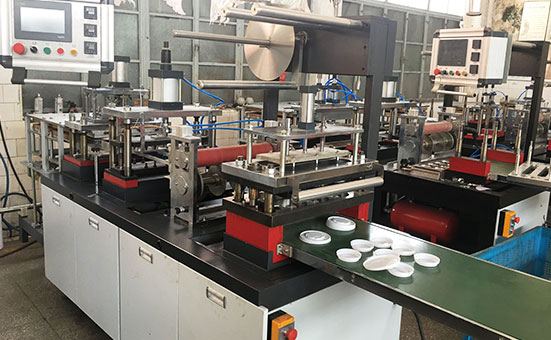

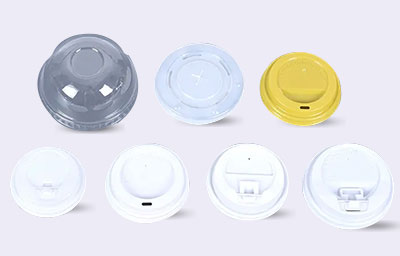

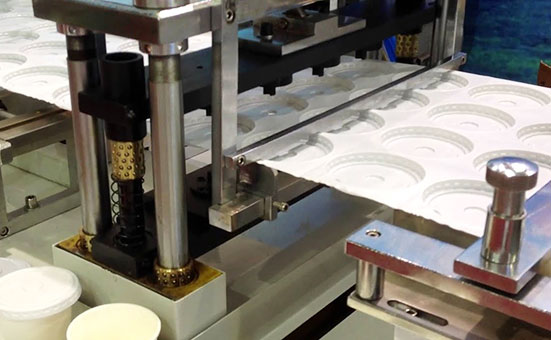

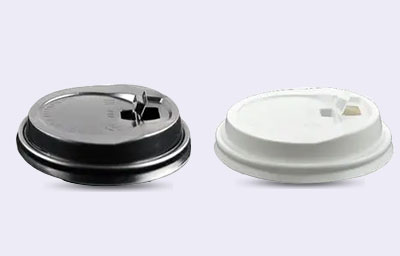

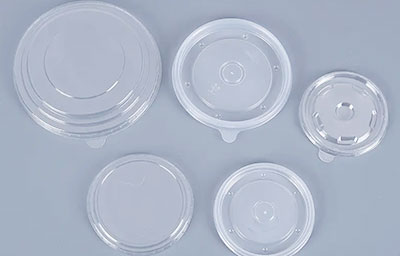

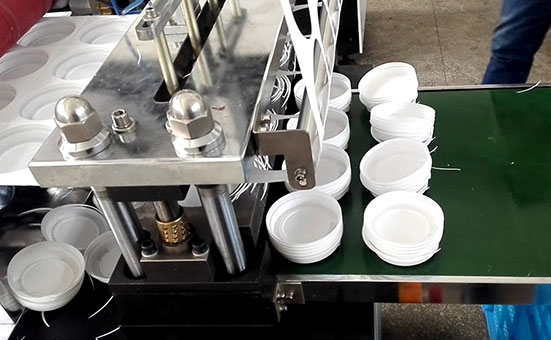

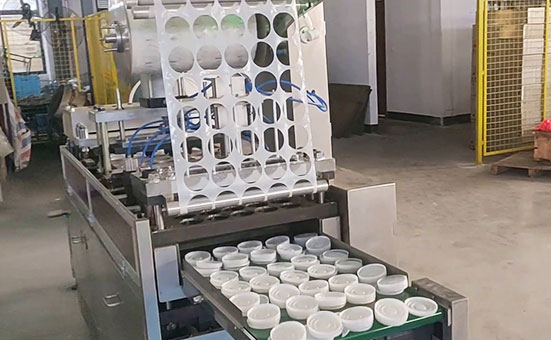

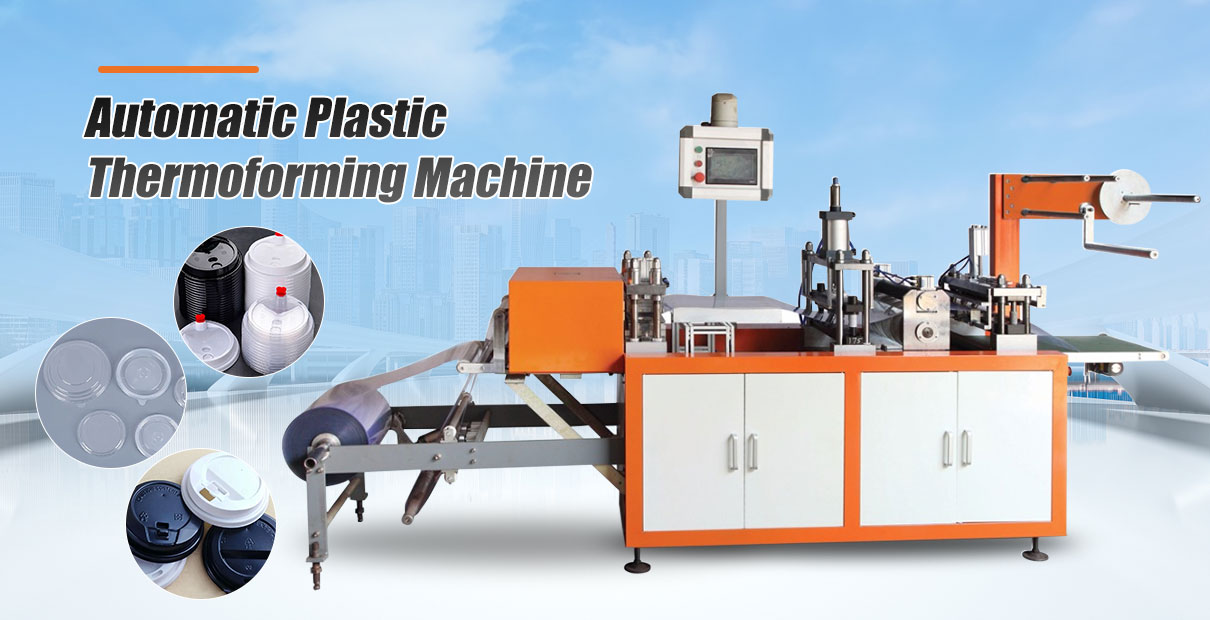

This machine uses PVC/PET/HIPS/PLA as raw materials to produce plastic cup lids, small PET plastic boxes and other plastic products. It can automatically form, punch and cut.
| Model | YG-450S |
| Speed | 13-35cycle/min |
| Total Power | 7Kw |
| Air Consumption | >3m³/min |
| Max Forming Width | 160mm |
| Rated Productivity | 80-100 pcs / Min |
| Max Forming Length | 430mm |
| Max Forming Depth | 45mm |
| Material | PVC/PET/HIPS/PLA |
| Clean Compressed Air | Air compressed air with 0.6-1.0Mpa pressure |
| Water chiller for moulds | Tap water or recycle water with 60L/H consumption |
| Weight | 1100kgs |
| Overall dimensions | 3200*1100*2000mm |

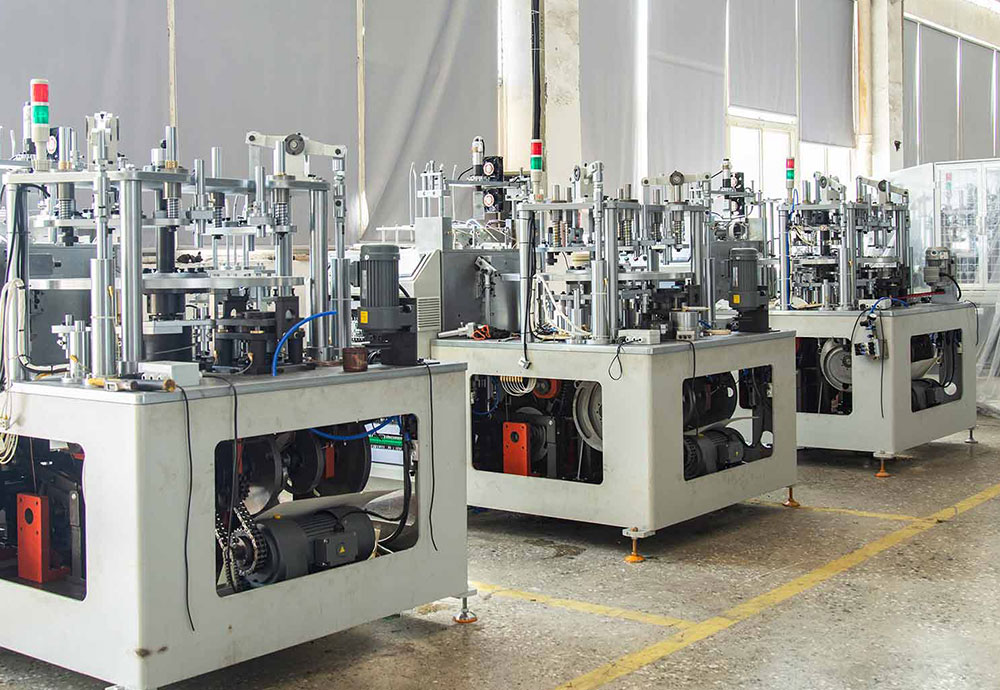

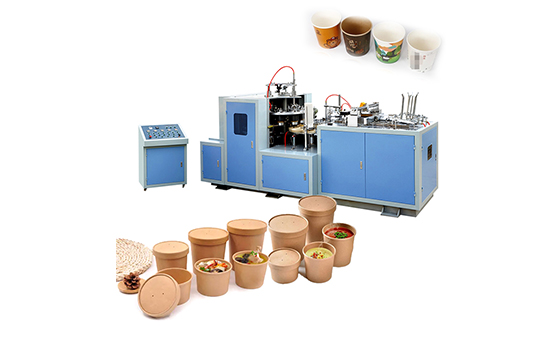

Paper Cup Machine

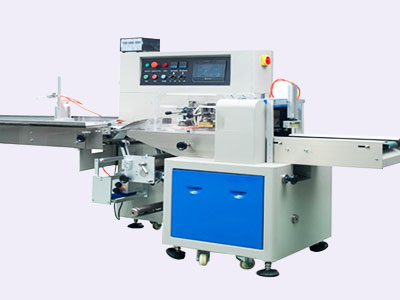

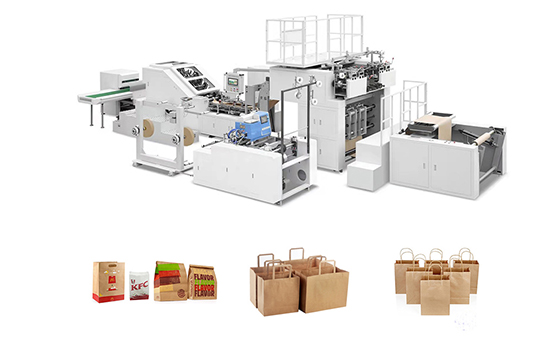

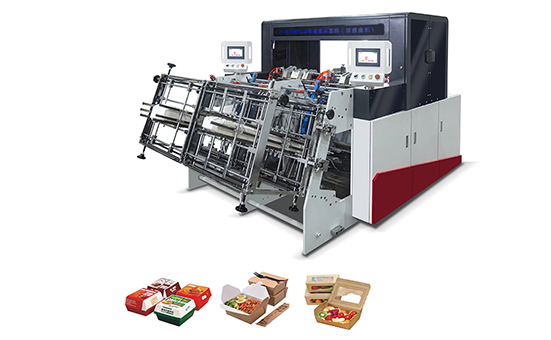

Packaging Machine

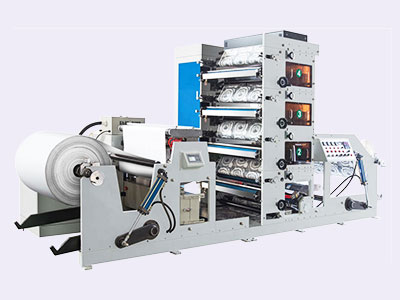

Flexo Printing Machine
