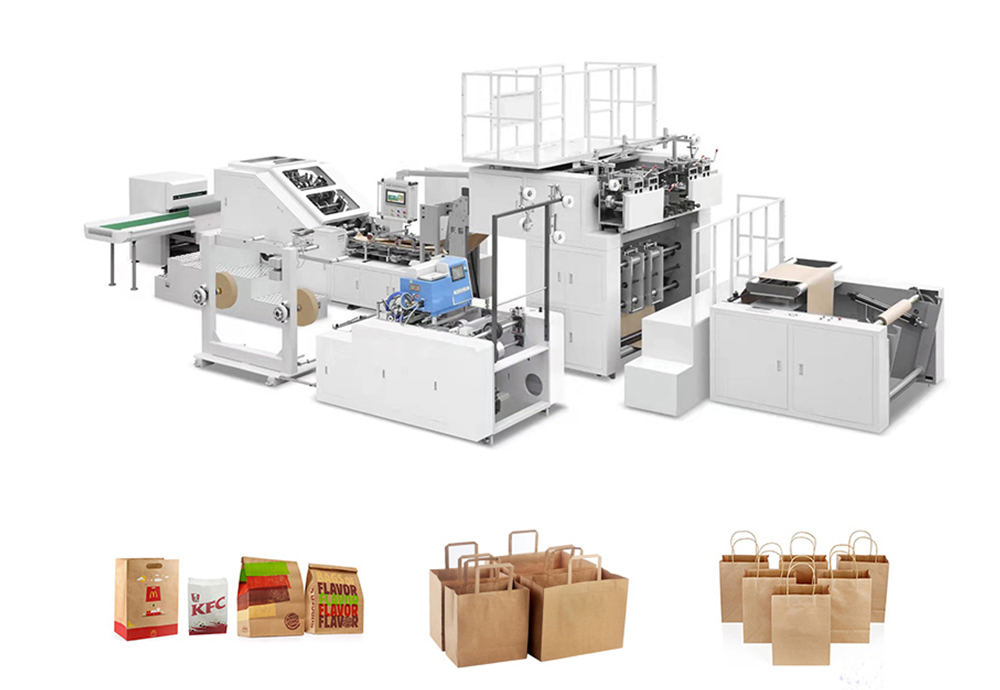

Paper Product-Making Machine
Yugong paper bag machine is an environmentally friendly paper bag machine equipment that produces various paper bags, snack food bags, bread bags, dried fruit bags, etc. This machine is more convenient to operate, more efficient and more stable.

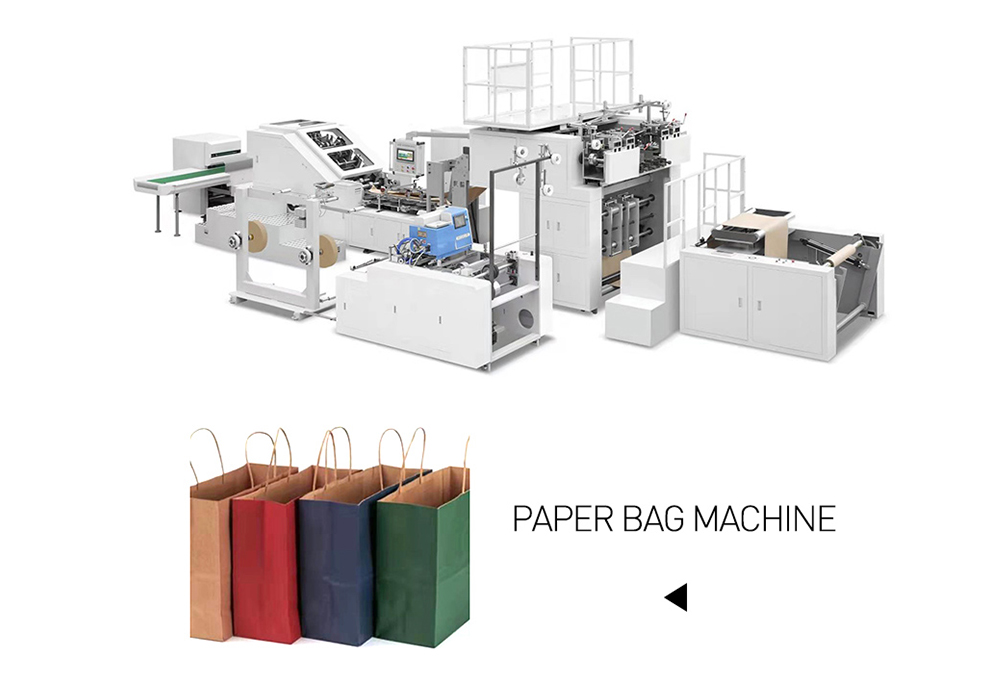

Flat Rope Bag Making Machine
Round Rope Bag Making Machine

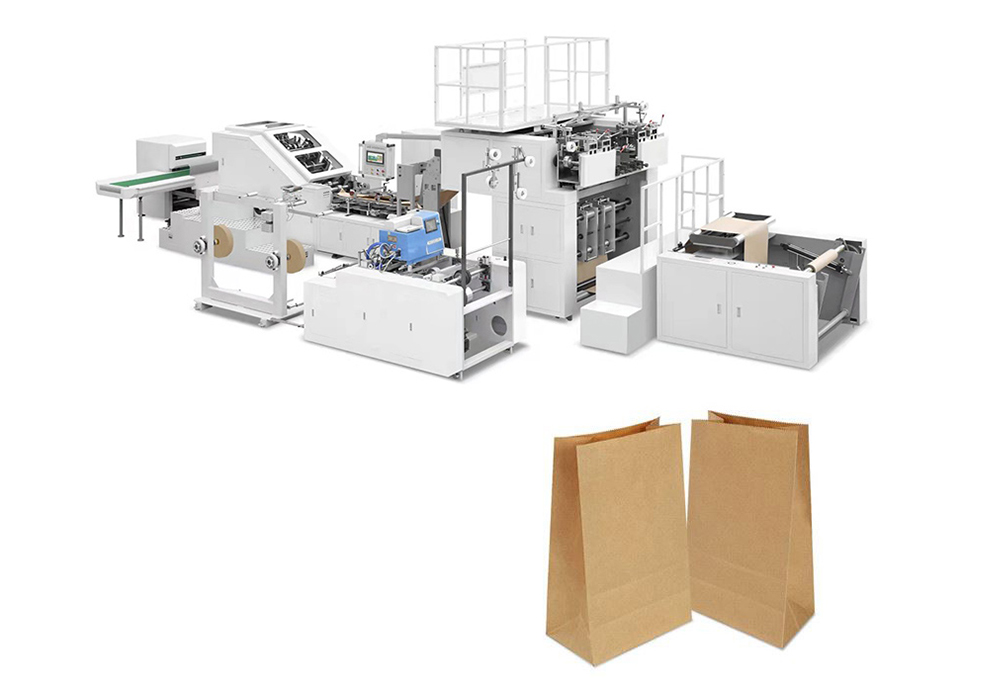

V Bottom Bag Making Machine

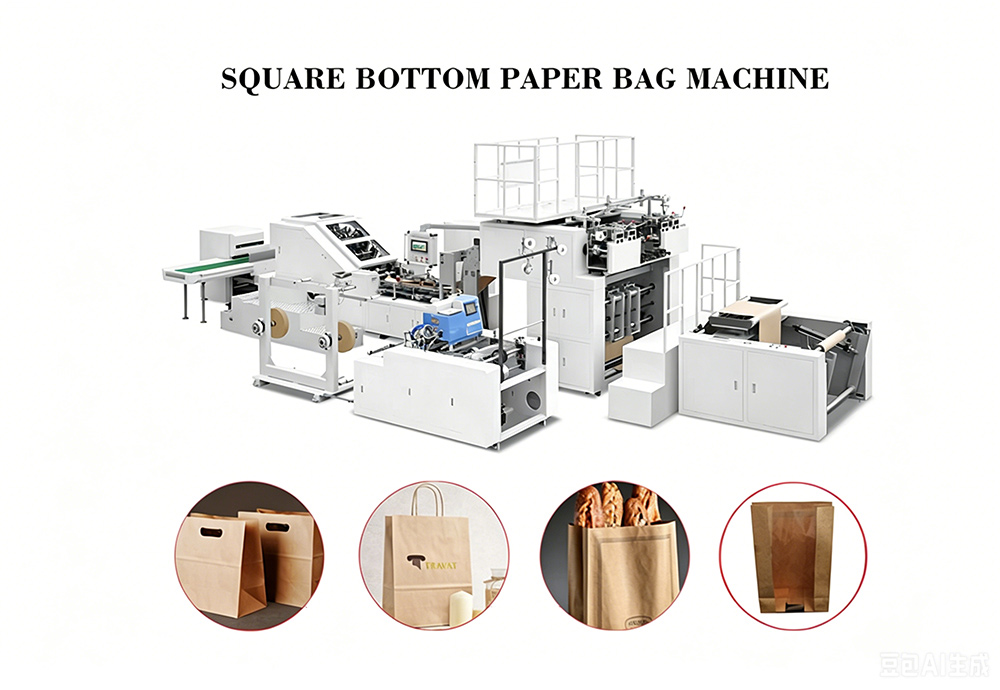

Square Bottom Paper Bag Machine
Yugong paper bag machine can produce a variety of paper bags. We can also customize suitable machines for you according to your paper bag types.
Conveying material
Automatic pneumatic device is adopted on the paper, and the manual switch on the paperis convenient without manual operation.Paper bag forming
The whole bag tube adjustment structure is adopted, So that it can be adjusted from one side or two sides, so that the paper bag design is simple and stable, S0 as to reduce the adjustment time and unnecessary waste.Bottom fabrication
Servo motoris used to control the lengthof paper bag. The gear cutter is used for high-speed and uniform drlling to ensure uniform and beautiful incision. The durable rubber ring is used for driling and long service life.Finished product receiving
At the bottom of the glue structure, there is no glue groove type on the glue device. The glue needs tobe pulled up to stop the glue quantitatively, so as to solve the problems of too much glue leakage and too long cleaning time.
| Model | YG-FD220 |
| Cutting Length | 190-330mm |
| Machine Type | Bag Forming Machine |
| Bag Type | Shopping Bag |
| Material | Paper |
| Voltage | 380v 50-60hz/customize |
| Bottom width | 50-105mm |
| Paper bag thickness | 50-130g/㎡ |
| Mechanical speed | 30-260pcs/min |
| Paper bag speed | 30-200pcs/min |
| paper roll width | 280-640mm |
